⭐ Key Features

•REDUCES SEDIMENT AND PARTICULATES - Pleated cellulose polyester media captures dirt, sand, silt, and rust down to 5 microns while maintaining high flow rates for whole house water filtration

•18 SQUARE FEET OF FILTER MEDIA - Pleated design provides significantly more surface area than standard cartridges for extended dirt-holding capacity and longer filter life

•SONICALLY WELDED FOR EFFICIENCY - Overlap seam is sonically welded to reduce internal bypass and improve filtration efficiency; resin-impregnated fibers provide higher wet strength than regular cellulose

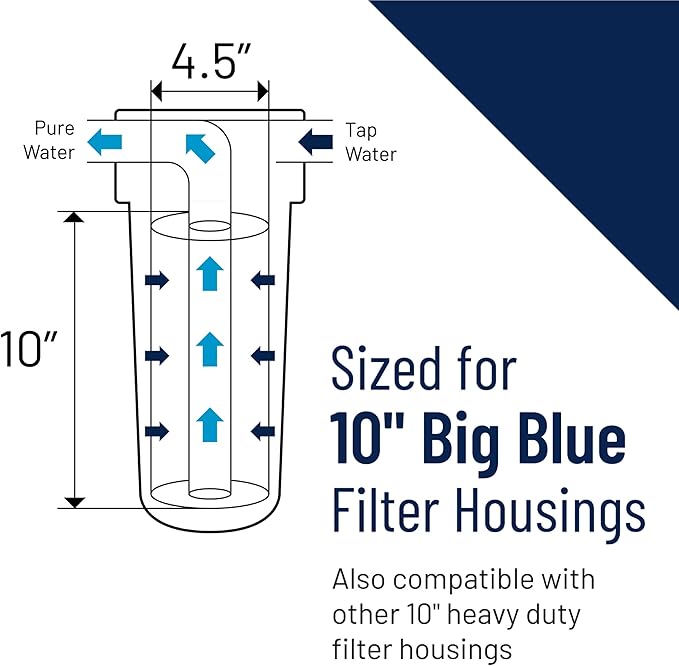

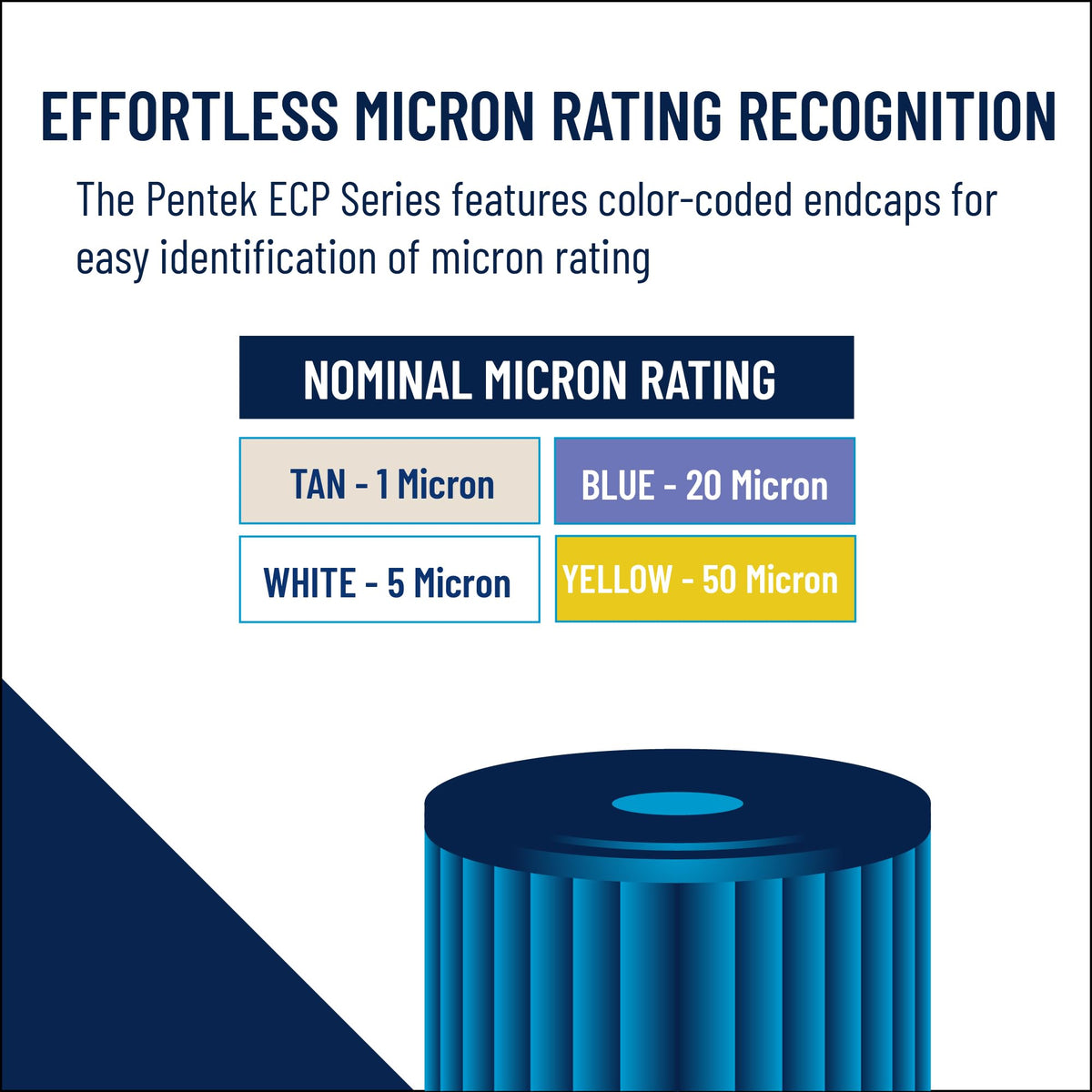

•FITS 10" BIG BLUE HOUSINGS - Drop-in replacement for any standard 10" x 4.5" Big Blue or heavy-duty filter housing; white endcap is color-coded for easy micron identification at replacement

•LOW PRESSURE DROP - Less than 1 psi at 20 gpm maintains strong water flow throughout your system; operating temperature range 40-125 degrees F; replace every 3-6 months

🛠️ Specifications

• Brand : Pentek
• Material : Resin, Polyester

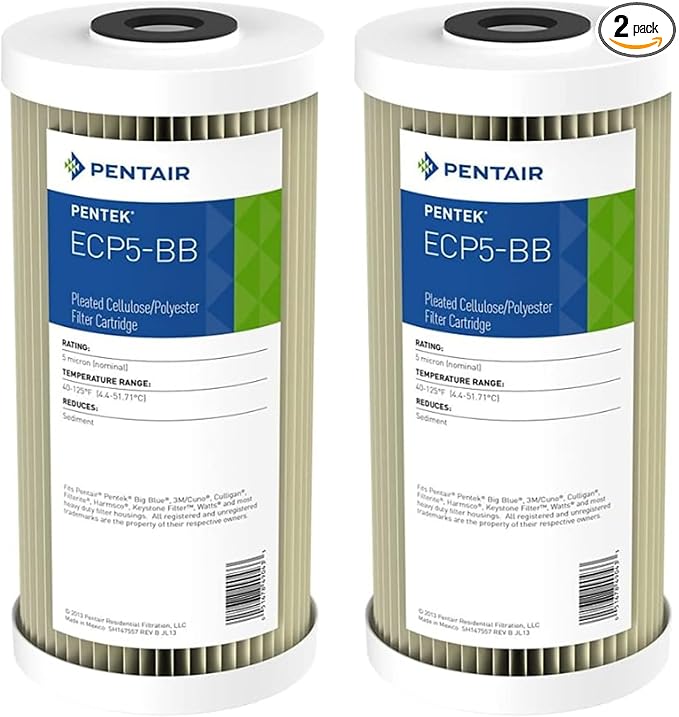

• Unit : 2 Count
• Item highlights : 5-Micron Pleated Cellulose Polyester Media Reduces Dirt, Sand, Silt, and Rust with 18 Sq Ft of Surface Area
• Number of items : 2
• Package quantity : 1
• Product benefit : KEEP YOUR WATER CLEAN and protect your appliances by removing dirt, sand, silt and particulates. LONGER LIFE with 33% more dirt holding media than many competitors. STRONGER than standard cellulose cartridges with a unique blend of resin-impregnated cellulose and polyester.
• Size : 5 Micron
• Style : 5 Micron
• Type : POTABLE_WATER_FILTER
• Item dimensions : H: 10.0 / L: 4.5 / W: 4.5
• Package dimensions : H: 5.0 / L: 11.2 / W: 9.9 (Weight: 1.87)

📋 Product Description

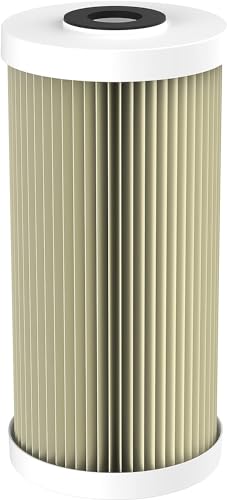

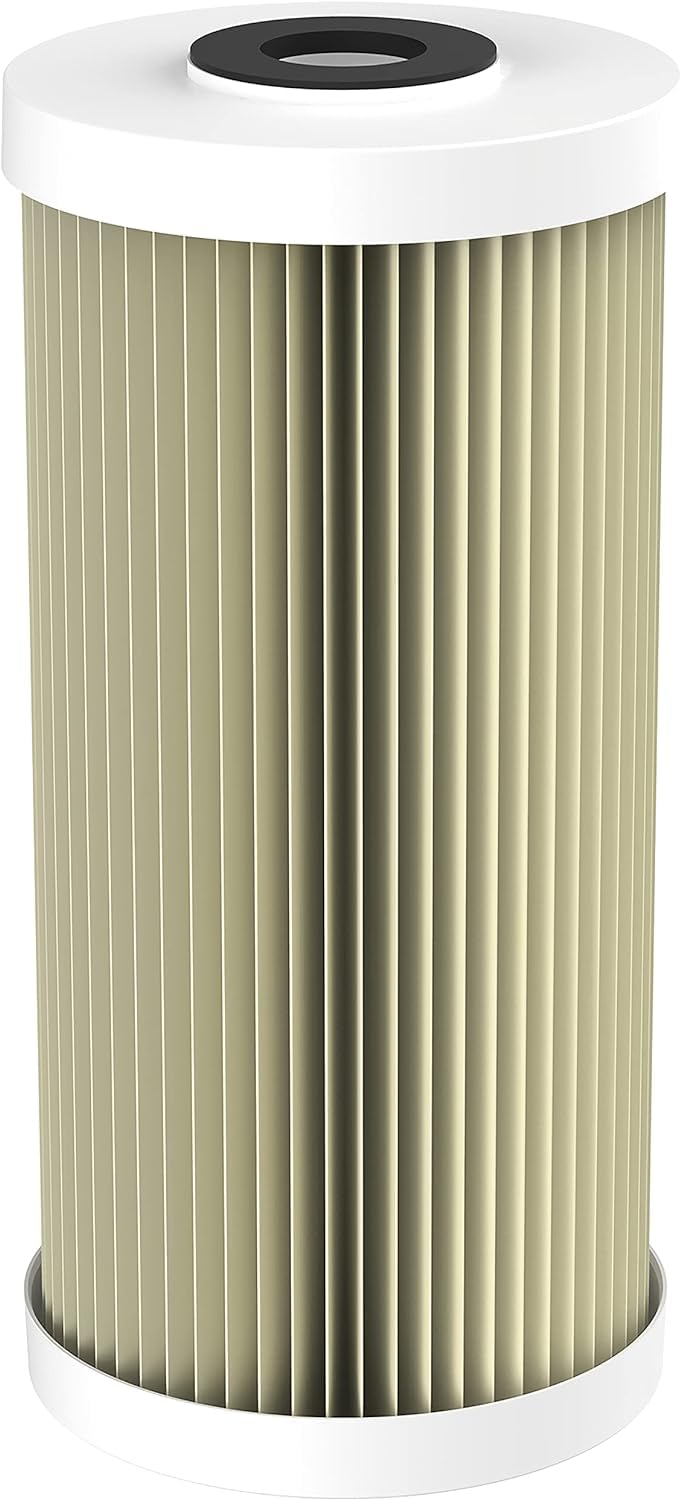

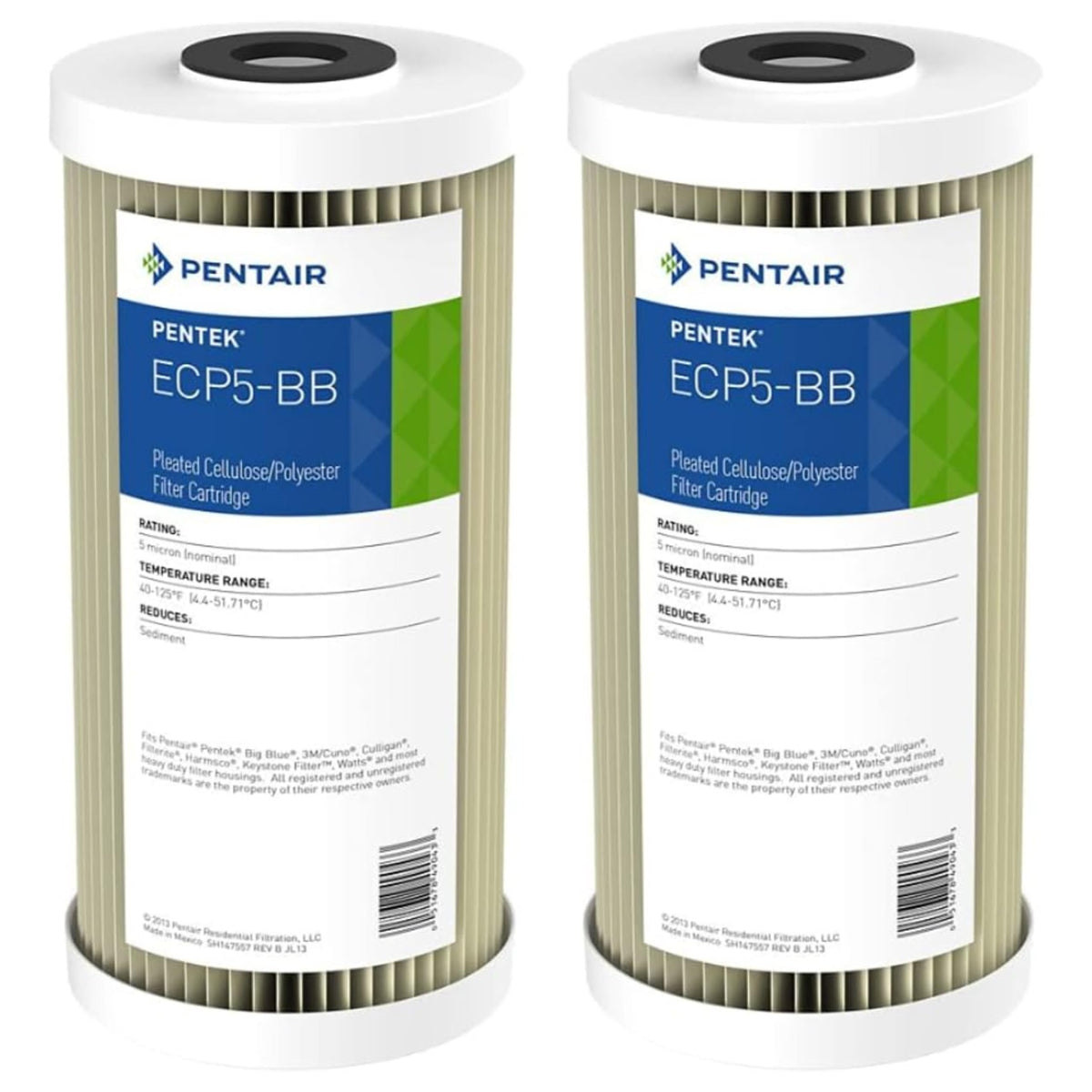

The Pentair Pentek ECP5-BB is a 5-micron pleated sediment filter cartridge designed for whole house water filtration in standard 10" x 4.5" Big Blue housings. The filter media is constructed from a blend of resin-impregnated cellulose and polyester fibers, providing higher wet strength than standard cellulose cartridges. The pleated design delivers 18 square feet of filter surface area, extending dirt-holding capacity and filter life compared to non-pleated alternatives. The ECP5-BB features a sonically welded overlap seam that reduces internal bypass for improved filtration efficiency. The cartridge is built around a polypropylene core for added structural strength, with polypropylene endcaps and gaskets for a secure seal. It is compatible with both chlorinated and non-chlorinated water supplies. This cartridge operates at less than 1 psi pressure drop at 20 gpm, with a temperature range of 40-125 degrees F. The white endcap is color-coded for quick 5-micron identification during filter changes. Replace every 3-6 months or when you notice a decrease in water pressure.
