⭐ Key Features

•Most economical, all-purpose pressure gauge

•Lead free wetted parts

•2.5" Dial Size

•±3-2-3% accuracy

•Black Steel Case

🛠️ Specifications

• Brand : Winters Instruments
• Style : 210
• Material : Aluminum,Phosphor Bronze,Polycarbonate,Steel,Brass
• Unit : 1 Count
• Color : Bronze,White
• Included components : Unit and Instruction Guide
• Number of items : 1
• Package quantity : 1
• Size : 0/30 psi/kpa
• Type : ELECTROMECHANICAL_GAUGE
• Item dimensions : H: 1.3 / L: 3.6 / W: 2.6 (Weight: 0.15)
• Package dimensions : H: 1.4 / L: 3.6 / W: 2.8 (Weight: 0.26)

📋 Product Description

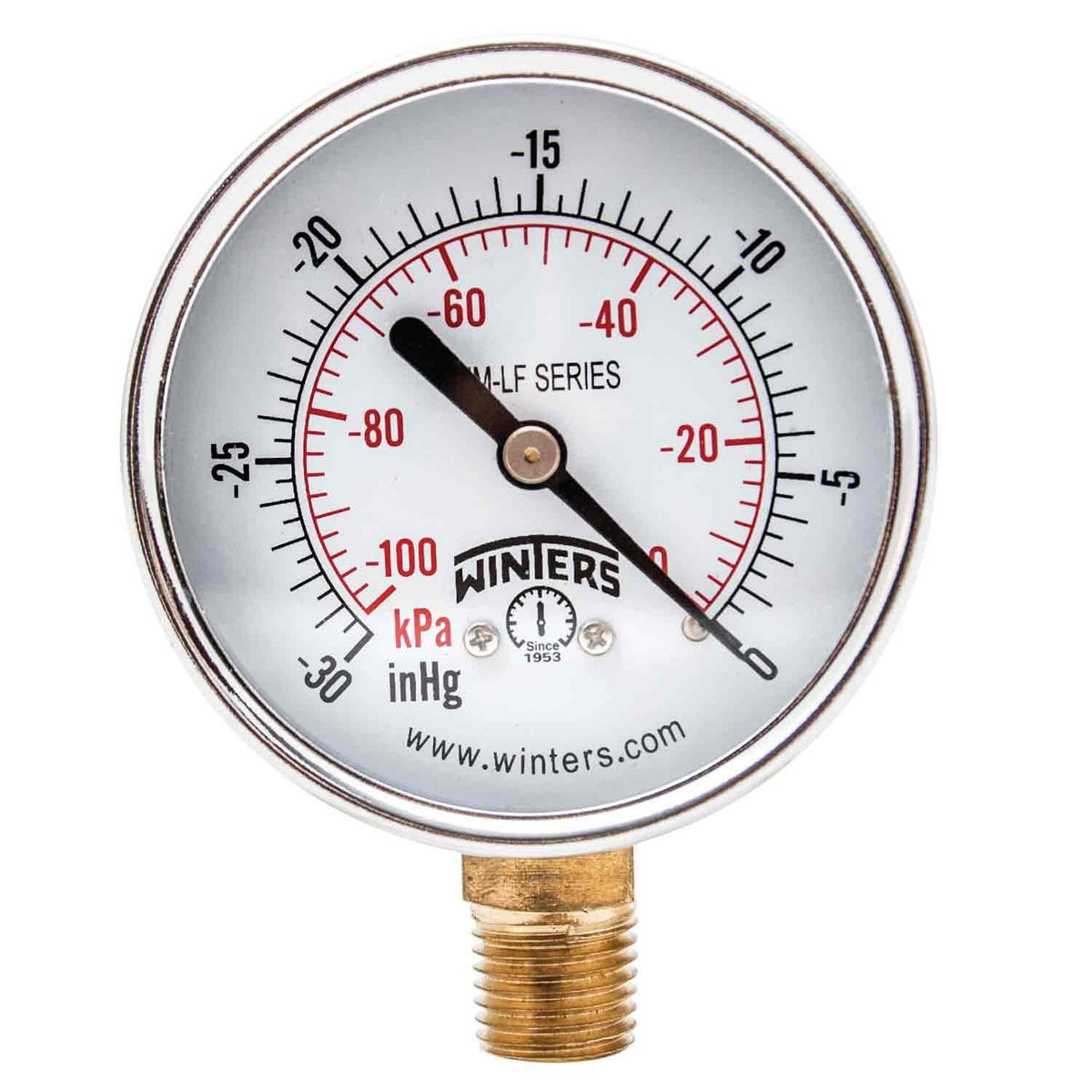

Applications: Plumbing, heating, air conditioning, pneumatic, water tanks, air compressors, OEM. Most economical, all-purpose pressure gauge. CRN registered. Dial: White aluminum with black and red markings. Case: Steel, painted black. Ring: Steel, painted black. Lens: Polycarbonate. Bourdon Tube: Lead free phosphor bronze. Socket: Lead Free Brass. Movement: Brass. Working Pressure: Maximum 75% of full scale value. Over-Pressure Limit: 25% of Full Scale Value. Enclosure Rating: IP52. Accuracy: ±3-2-3% ANSI/ASME Grade B. Dial Size: 2.5” (63mm). Range: 30" Hg VAC/KPA. Connection: 1/4" NPT Bottom Connect.
