⭐ Key Features

•SHIPS PRE-ASSEMBLED FOR FAST INSTALLATION - Two Big Blue housings arrive fully assembled on a powder-coated carbon steel wall-mounting bracket with hardware, reducing setup time and simplifying installation.

•TWO-STAGE FILTRATION CAPABILITY - Each housing accepts any 20-inch x 4.5-inch filter cartridge, making this system suitable for two-stage sediment/carbon configurations for whole house, commercial, or industrial use.

•PRESSURE RELIEF FOR EASY MAINTENANCE - Both housings are equipped with pressure relief buttons that allow safe depressurization before opening for cartridge replacement.

•DURABLE POLYPROPYLENE CONSTRUCTION - Housing caps and sumps are molded from polypropylene for chemical resistance and structural integrity. Buna-N o-rings provide a reliable seal. Maximum operating temperature is 100 degrees F.

•HIGH FLOW CAPACITY - 1-inch NPT connections support flow rates up to 40 gpm. System dimensions are 15-1/4 x 8-1/2 x 26-1/2 inches. Rated for a maximum pressure of 90 psi. Cartridges sold separately.

🛠️ Specifications

• Brand : Pentek
• Style : 2 Housings
• Material : Polypropylene
• Unit : 1 Count
• Color : Blue
• Included components : mounting bracket, wrench
• Item highlights : 20-Inch, Pre-Assembled, Holds 20" x 4.5" Cartridges, Whole House
• Number of items : 1
• Package quantity : 1
• Size : 1 Count (Pack of 1)
• Special features : Heavy Duty
• Type : WATER_PURIFICATION_UNIT
• Item dimensions : H: 9.8 / L: 16.3 / W: 29.3 (Weight: 24.4)
• Package dimensions : H: 10.5 / L: 29.5 / W: 16.5 (Weight: 25.0)

📋 Product Description

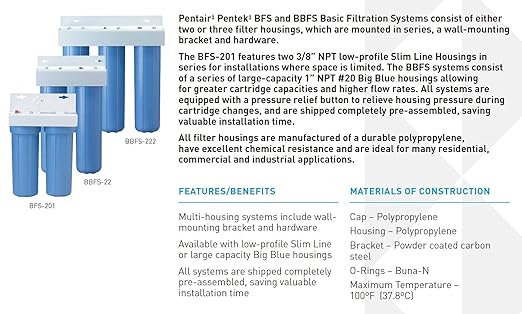

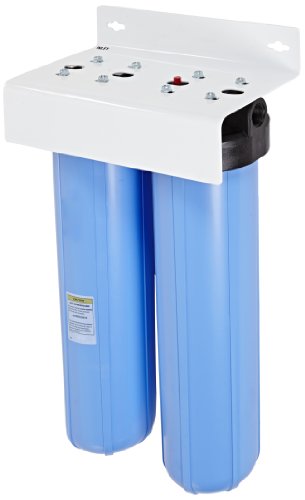

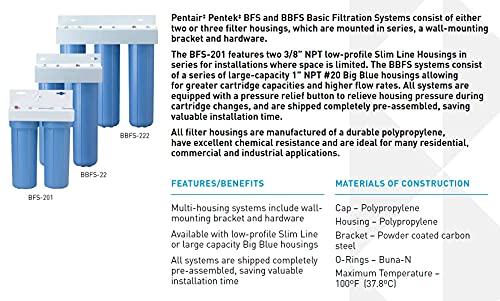

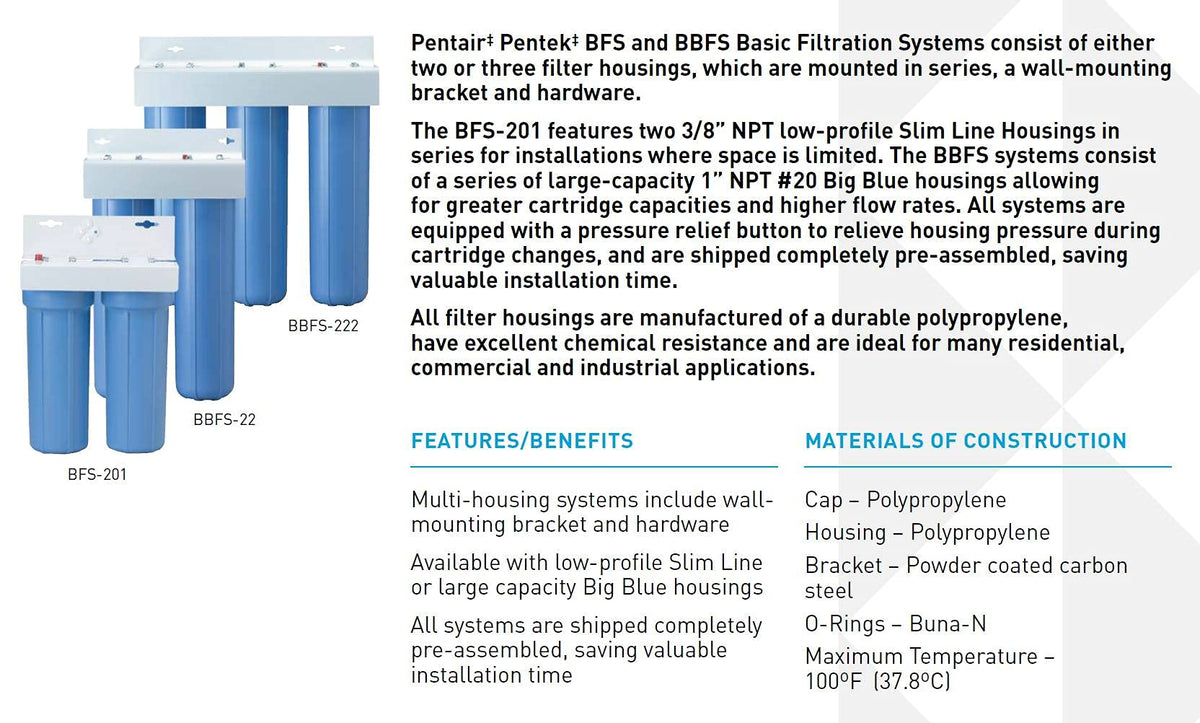

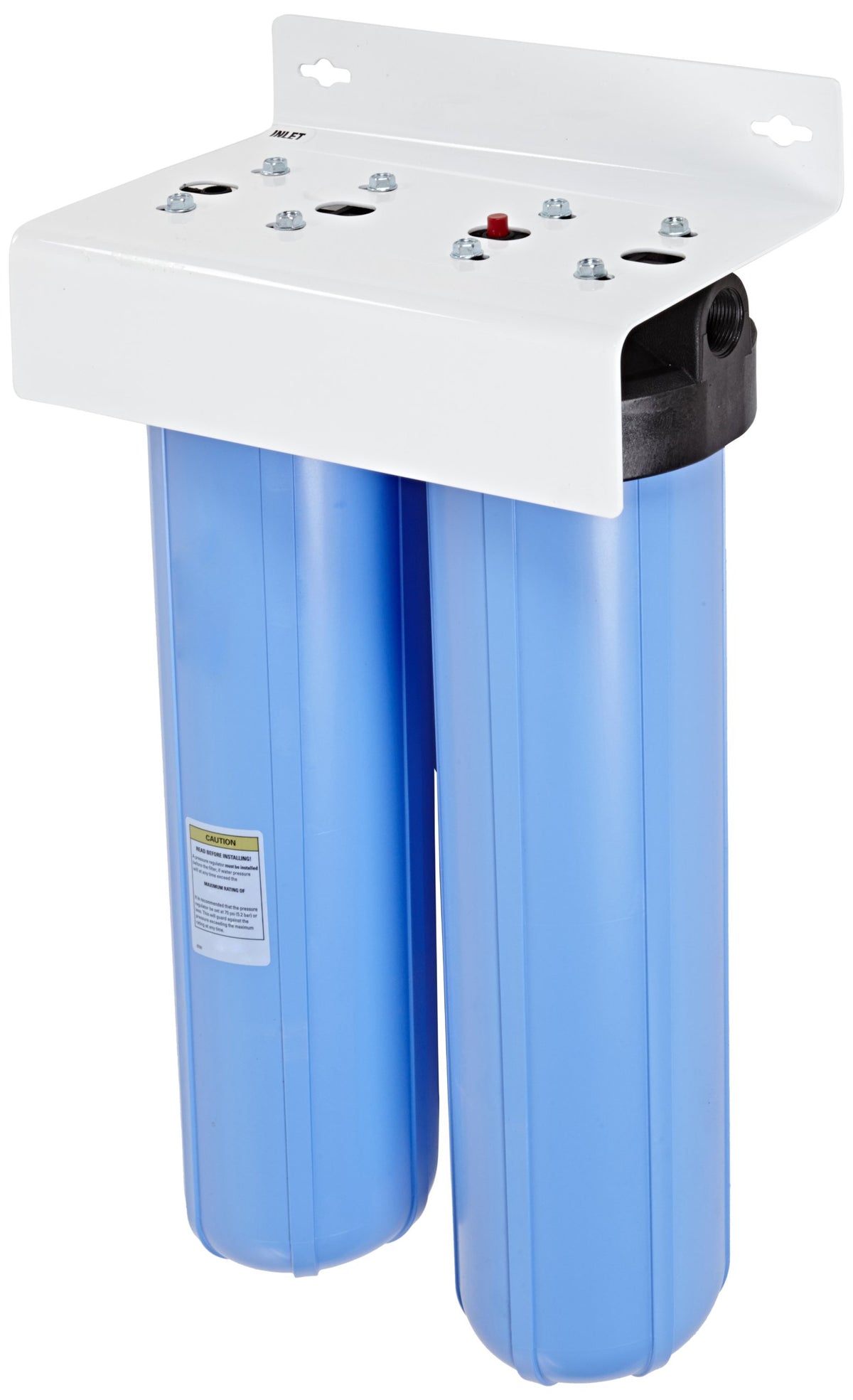

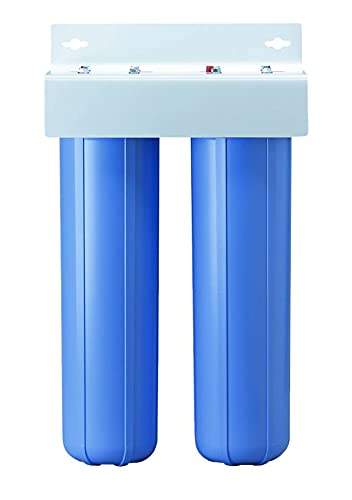

The Pentair Pentek BBFS-22 is a pre-assembled two-housing filtration system built around Big Blue housings with 1-inch NPT connections. It ships ready to install on a powder-coated carbon steel wall-mounting bracket with included hardware, so you can mount and plumb the system without assembling individual components. Each housing accepts any standard 20-inch x 4.5-inch filter cartridge, supporting two-stage filtration setups such as sediment pre-filtration followed by carbon treatment. The system is designed for whole house, commercial, and industrial applications including sediment reduction, iron reduction, and chlorine taste and odor improvement. Both housings feature pressure relief buttons for safe depressurization during cartridge changes. The polypropylene housings and Buna-N o-rings provide chemical resistance and reliable sealing. Overall system dimensions are 15-1/4 x 8-1/2 x 26-1/2 inches. The BBFS-22 supports flow rates up to 40 gpm and is rated for a maximum pressure of 90 psi and operating temperature up to 100 degrees F. Filter cartridges are sold separately
